The OmniSeal® pressure drop calculator is a great tool for engineers in the field to calculate pressure drop across the OmniSeal® double block and bleed expanding plug valves. Simply enter the flow rate in gallons per minute and select the size and pressure class of OmniSeal® valve being used. Pressure drop in PSI will be given for the specified flow rate.
Other features:

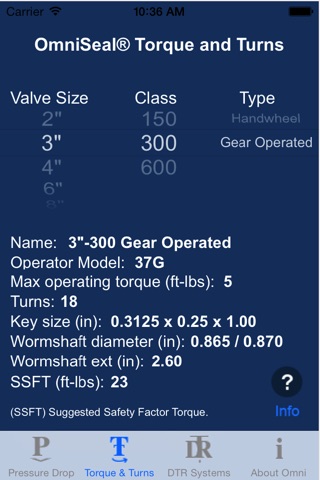

• Information on our valve operating torque and number of turns to open and close.
• DTR (differential thermal relief) system information and images.
